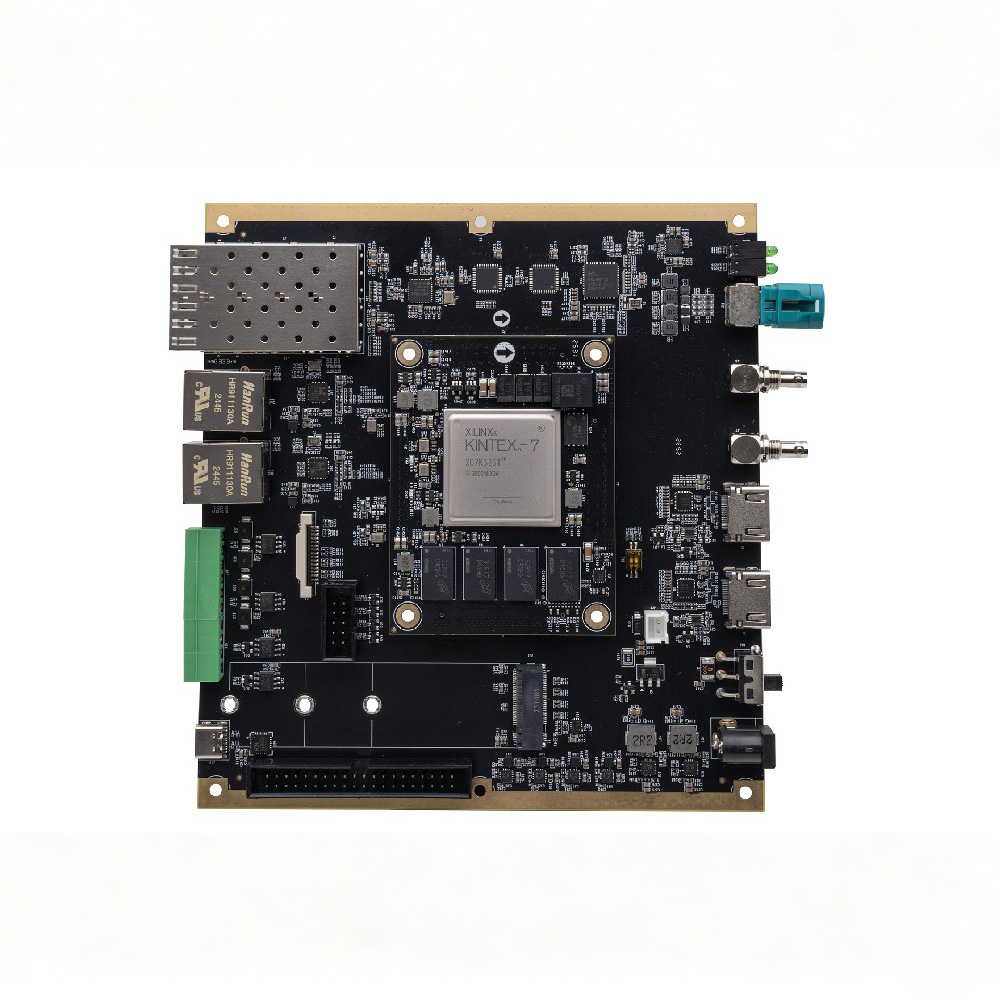

AMD Xilinx XC7K325T Kintex7 Development Board – FPGA Board

Key Features：

– Ultra-low-latency hardware real-time：FPGA hardware direct video path eliminates software scheduling overhead, achieving microsecond-level end-to-end latency
– Full-interface high bandwidth: Full coverage of 12G-SDI, GMSL2, 10G fiber, MIPI for multi-channel high-speed video input
– Industrial-grade reliability：-40 to 85 C wide-temperature design for industrial, medical and automotive environments
– High compute power, easy to expand：326K Logic Cells + 840 DSP, Equipped with 2GB DDR3 and M.2 high-speed storage for complex parallel algorithm processing
– Flexible custom development：Open hardware resources and interface design; full support for algorithm porting, hardware customization and IP development

Key Specifications:

Interfaces:

Applications:

1. Ultra-low-latency video codec systems
Leveraging FPGA native parallel compute and direct video hardware architecture, it achieves ultra-low-latency 4K/8K encoding/decoding, real-time transcoding and hardware-level transmission. Ideal for live streaming, remote medical imaging, low-latency video conferencing, industrial monitoring and in-vehicle video transmission, with microsecond-level end-to-end latency.
2. Medical endoscope ISP development and image processing
Four-channel GMSL2 interface supports long-distance MIPI sensor data transmission. Custom FPGA medical-grade ISP algorithms enable image denoising, color correction, detail enhancement, 3D reconstruction and multi-image fusion. Suited for HD endoscope systems, laparoscopes, minimally invasive surgery platforms, medical image recorders and portable inspection devices.
3. Multi-protocol video interoperability and format conversion
Integrating HDMI 2.0, 12G-SDI, 10G fiber and Gigabit Ethernet, it enables seamless conversion between SDI, HDMI, 10G optical and IP streams, multi-format distribution, real-time stream forwarding and broadcast-grade routing. Ideal for broadcast equipment, video matrices, surveillance platforms, conferencing systems and industrial video gateways.
4. FPGA Lossless video storage acceleration
With on-board M.2 SSD and FPGA hardware acceleration, real-time lossless 4K/8K capture, high-speed writing, local storage and instant playback are achieved without CPU involvement. Ideal for industrial vision inspection, medical image archiving, HD surveillance recording, high-speed video logging and research data storage — preserving original frames with zero distortion.
5. Radar high-speed signal processing
Receiving raw radar sensor data via GMSL2, massive on-board DSP resources enable radar preprocessing, beamforming, pulse compression, target detection, digital filtering and real-time analysis. Suited for industrial, security, automotive mmWave, UAV avionics and weather radar applications.
6. Industrial vision high-speed image acquisition
Multiple high-speed video interfaces support line-scan cameras, area-scan industrial cameras, CoaXPress and SDI devices, enabling real-time acquisition, preprocessing, defect detection, dimensional measurement and AI inference. Widely used in semiconductor wafer inspection, PCB AOI, lithium electrode inspection, high-speed line QC and precision optical metrology.
