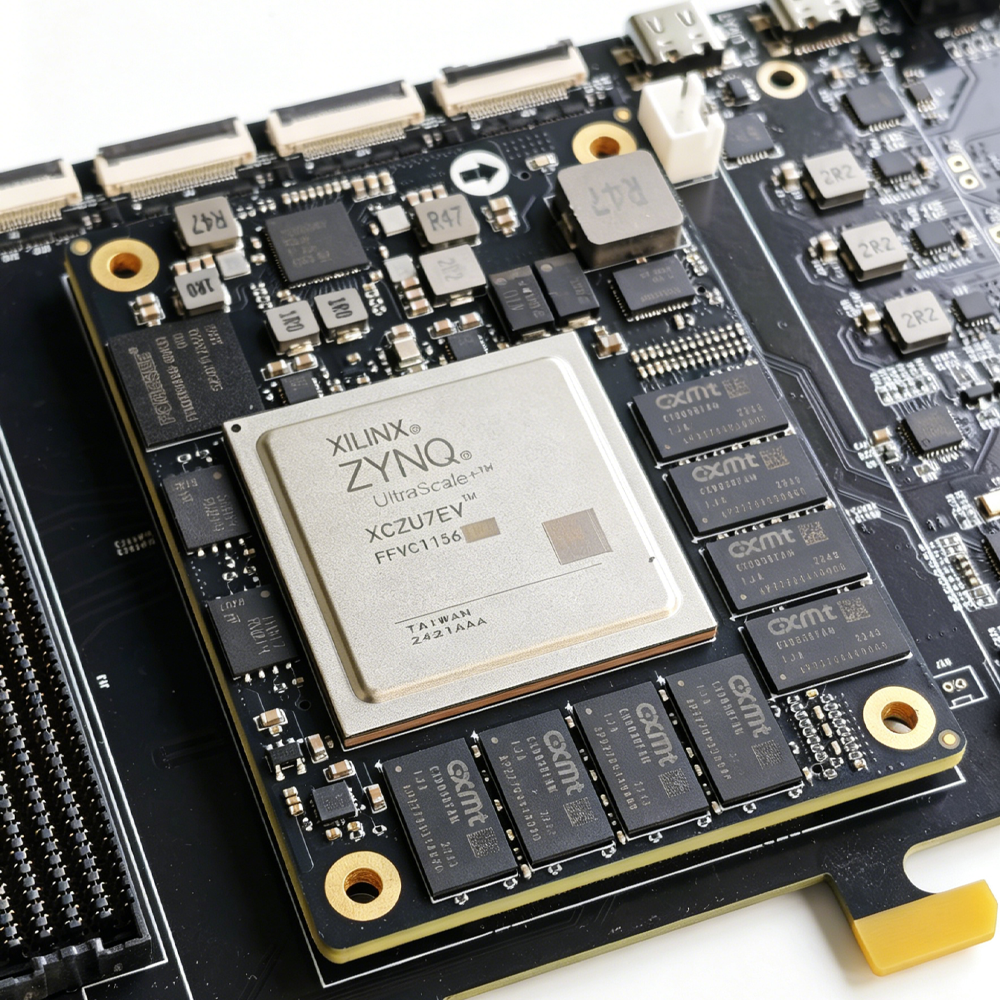

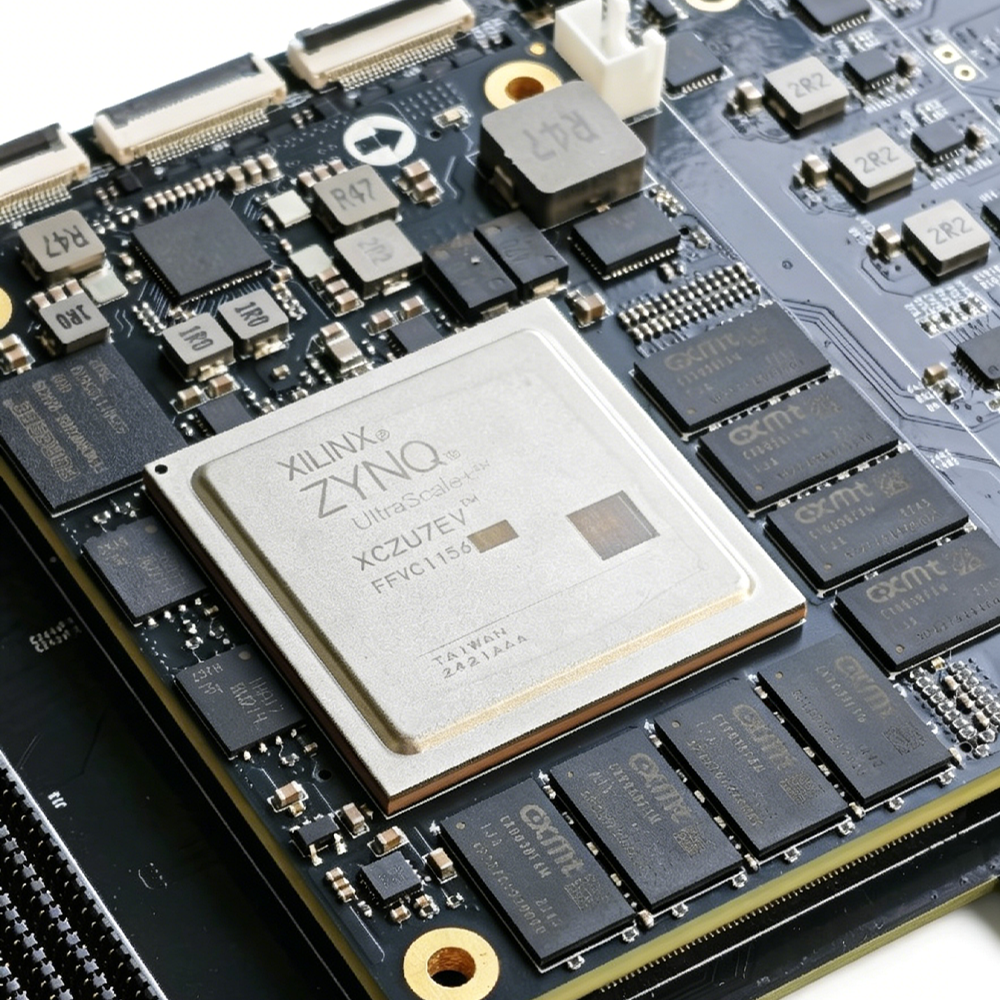

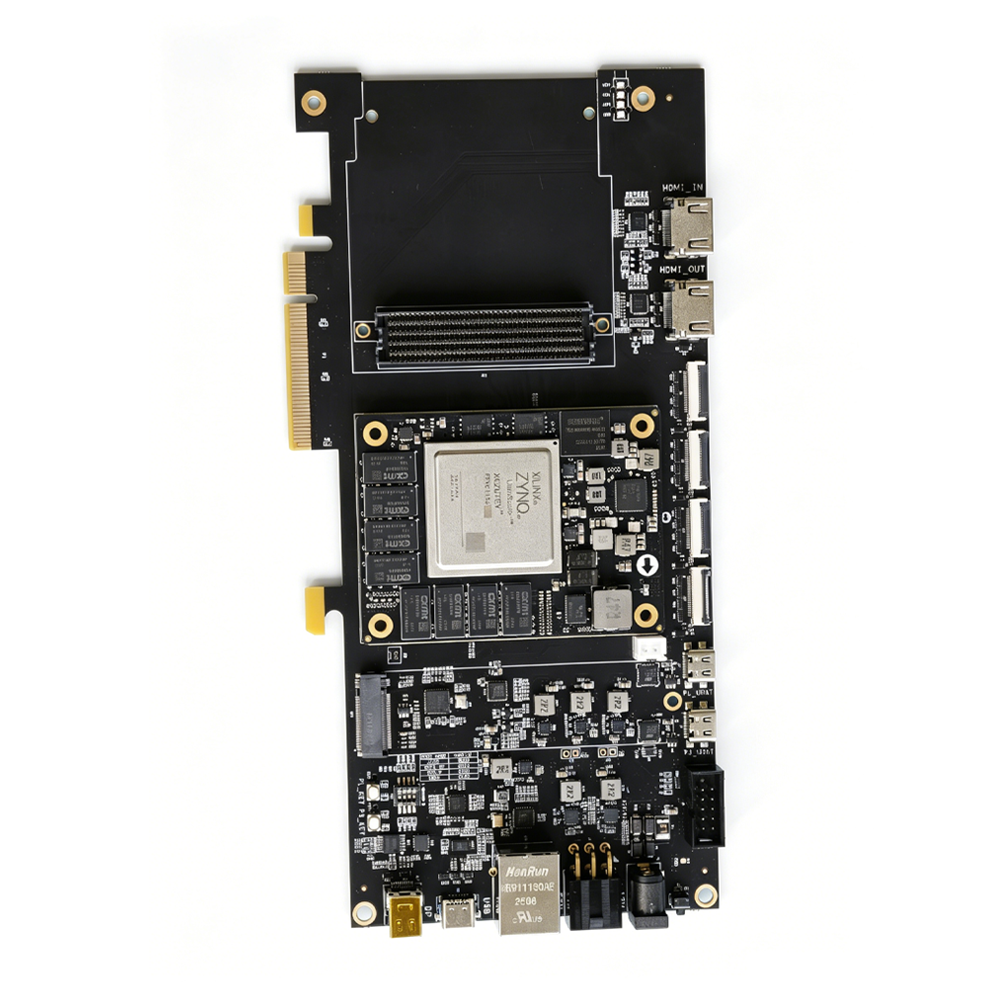

AMD Xilinx XCZU7EV Zynq UltraScale+ MPSoC PCIE FPGA Video Development Board
Product Introduction:
A high-performance PCIe video processing board based on the XCZU7EV-2FFVC1156I industrial-grade MPSoC. With large logic resources, DSP arrays and a VCU hardware codec engine, it natively supports H.264/H.265 hardware encoding and decoding, targeting high-quality, low-latency multi-interface video system development.
Board Specifications:
| Board Model | PBZU7EV (core board + carrier) |
| FPGA Chip | XCZU7EV-2FFVC1156I |
| Grade | Industrial; -40°C to 85°C |
| CPU | Quad Cortex-A53 + dual Cortex-R5F |
| GPU | Mali™-400 MP2 |
| VCU (video codec) | H.264/H.265@4K 120hz |
| PS High-Speed Interfaces | PCIe Gen2 x4，2x USB3.0，SATA 3.1，DisplayPort，4x Tri-mode Gigabit Ethernet |
| PS Low-Speed Interfaces | 2x USB 2.0，2x SD/SDIO，2x UART，2x CAN 2.0B，2x I2C, 2x SPI，4x 32b GPIO |
| Logic Cells | 504K |
| LUTs | 230.4K |
| Flip-Flops | 460.8K |
| DSP | 12288 |
| Block RAM | 11Mb |
| UltraRAM | 27Mb |
| QSPI FLASH | 1GBit (128MB) dual QSPI Flash |
| FMC HPC | 34 pairs of IO, 8 pairs of transceivers GTY |
| PS DDR4 | 4GB，64bit，2400Mbps |
| PL DDR4 | 4GB，64bit，2400Mbps |
Board Interfaces:
| PCIE | PCIe Goldfinger: PCIe 3.0 x8, up to 64 Gbps |
| FMC Connector | LA: 34 IO pairs; 8 GTH transceiver pairs up to 16 Gbps |
| DP Output | 1x Mini DisplayPort, supports 4K@30Hz or 1080p@60Hz |
| M.2 Connector | 1 channel PCIE 2.0 x1 Standard M.2 connector for M.2 SSD |
| GbE | 1 channelGbE, Ethernet data exchange with other network devices |
| USB 3.0 | 1 channel USB 3.0，USB InterfacesType C, supporting HOST, SLAVE and OTG modes |
| USB Uart Interfaces | 1 USB Type-C to UART for debugging |
| JTAG Debug Port | 1 10-pin 2.54mm standard JTAG connector for FPGA programming and debugging |
| Micro SD 卡座 | 1 channel Micro SD socket for OS image and file system storage |
| HDMI输入 | 1 HDMI 2.0 input, up to 4K@60Resolution |
| HDMI输出 | 1 HDMI 2.0 output, up to 4K@60Resolution |
| MIPIInterfaces | 4 MIPI interface, CSI/DSI, bidirectional, 4 lanes per port@2.5G，InterfacesCompatible with Raspberry Pi MIPI |
| LVDSInterfaces | InterfacesShared with MIPI; 1.8V configuration supports LVDS output |
Board Compatibility:
Core board compatible: XCZU7EG-2FFVC1156I, XCZU7CG-2FFVC1156I, XCZU11EG-2FFVC1156I
Applications:
1. 4K HD Video Processing & Multimedia Systems
Integrated hardware codec enables 4K acquisition, preprocessing, H.264/H.265 encoding/decoding, multi-stream stitching and real-time streaming. Suited for live streaming devices, video conferencing terminals, portable production switchers and multi-channel playback systems, with PCIe high-speed host data transfer.
2. Embedded AI & Machine Vision Inspection
PS+PL Heterogeneous architecture with DPU AI acceleration enables image distortion correction, defect detection, object recognition and feature extraction. Suited for production-line vision inspection, smart surveillance, UAV vision payloads and semiconductor inspection, balancing real-time performance with algorithm flexibility.
3. Medical Imaging Equipment
Hardware low-latency image processing supports multi-channel acquisition, denoising, color correction and 3D reconstruction. Used in HD endoscope systems, laparoscopy platforms and portable medical devices, single-chip acquisition-‑处理‑encoding integration reducing device footprint.
4. Automotive Intelligence & ADAS
Multi-camera input enables surround-view, driver monitoring, multi-channel recording and preprocessing. PL handles image acceleration while ARM runs application logic, suited for automotive perception terminals, recorders and simulation platforms.
5. High-speed Acquisition & Communications Signal Processing
With PCIe Gen3 and GTH transceivers, enables high-speed data logging, fiber communications, SDR baseband processing, protocol parsing and data forwarding. Used in 5G modules, high-speed acquisition cards, edge gateways and device-to-device links.
6. Industrial Edge Computing & Automation
Quad A53 + dual R5F real-time processors with FPGA logic combine OS applications with hard real-time control. Supports motion control, multi-axis coordination, industrial bus parsing and sensor aggregation for smart factories, industrial robots and IIoT edge nodes.
7. Algorithm Prototyping & Product Development
Complete Vitis/Vivado environment supports IP development, HLS and hardware-software co-design. Suited for MPSoC heterogeneous prototyping, research product development and early-stage product evaluation, accelerating time-to-market.
