About Duyuan Electronics
Our products cover research and education, industrial acquisition, high-speed signal processing and edge intelligence, spanning both imported and domestic FPGA platforms. We serve university labs, research institutes and industrial customers with end-to-end service from selection evaluation and board delivery to debugging support.
Founded in 2020, Shanghai Duyuan Electronics Co., Ltd is a technology service provider specializing in FPGA development boards and core boards. Our team of hardware and logic engineers has deep expertise in programmable hardware, offering standard FPGA boards, custom hardware design, IP integration and technical support.We are technology-driven, focused on real customer development needs, helping teams accelerate prototyping and product delivery, and strive to be a trusted FPGA hardware partner.
Years of Industry Experience
0
+
Performance Optimized
0
%
Responsive
0
%
Industry experience
0
+
Adaptation rate
0
%
Company Introduction
We specialize in FPGA, MPSoC and SoM heterogeneous computing, covering chip selection, hardware design, IP development, software porting and system integration. All products follow industrial-grade wide-temperature, high-reliability design standards. Backed by a senior team with over a decade of experience, we serve industrial control, high-speed communications, AIoT, medical electronics, autonomous driving and research institutions, providing customizable, high-performance FPGA solutions.
Popular Products

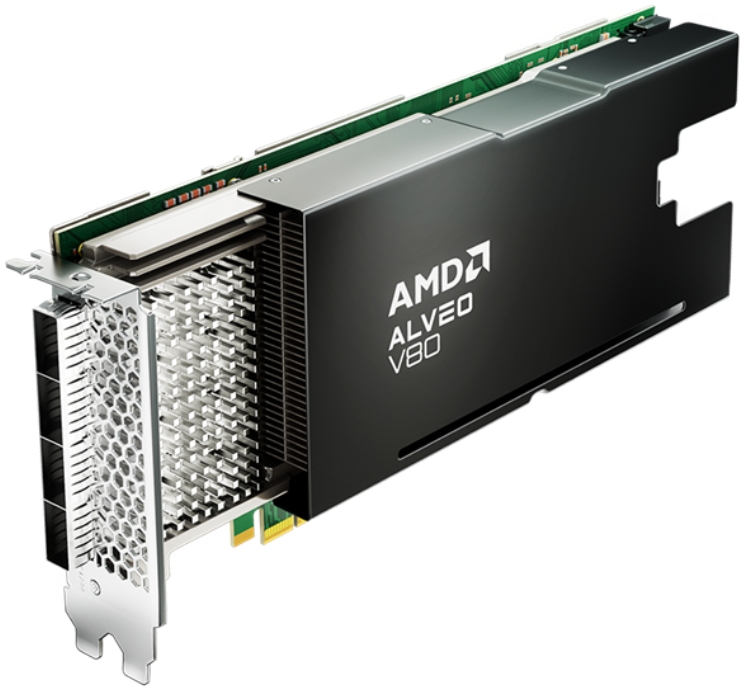

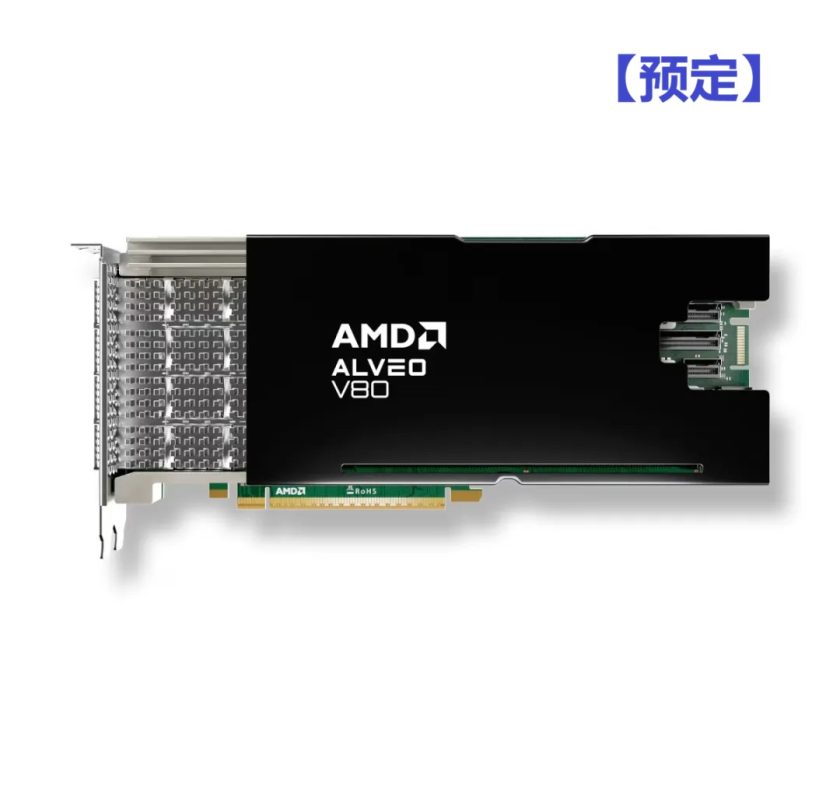

[Lead Time: 3 Months] A-V80-P64G-PQ-GServer Accelerator CardBD V80 DCAB ALVEO QSFP56/4 PCIE
Inquire Now
The AMD Alveo V80 accelerator card is a compute accelerator with high-bandwidth memory (HBM), based on the 7nm Versal adaptive SoC architecture. Designed for memory-intensive workloads including HPC, data analytics, cybersecurity, sensor processing, computational storage and fintech. Lead time: ~12 weeks.

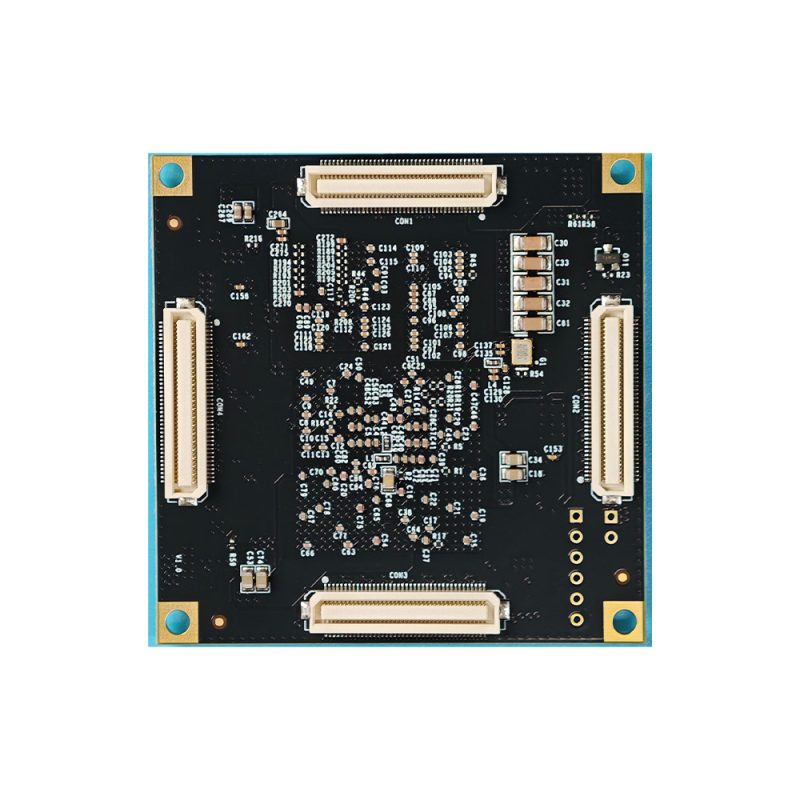

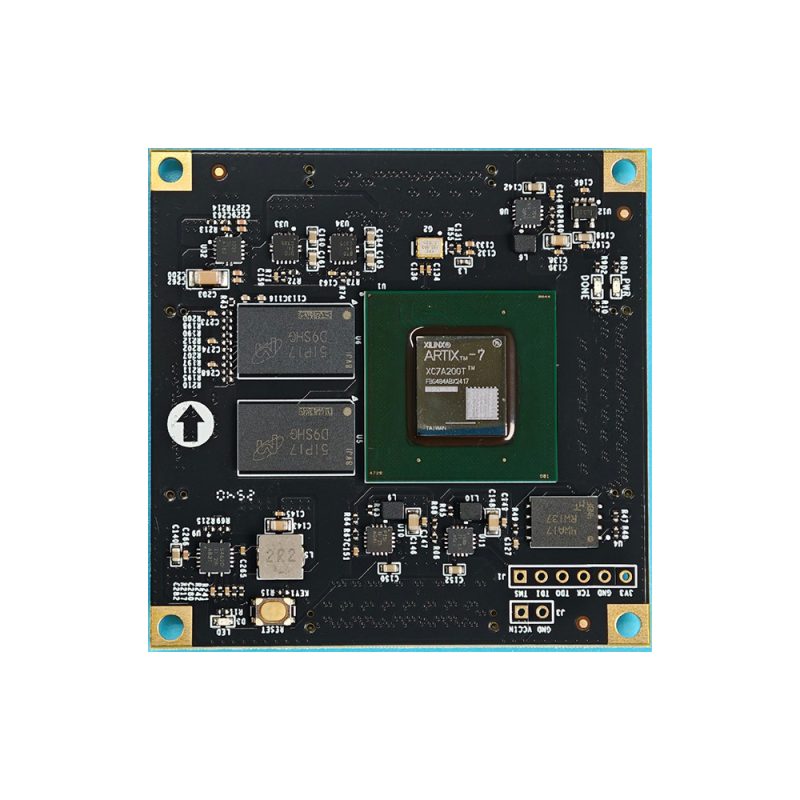

AMD Xilinx Artix7 XC7A200T Core Board – PBC7A20
Inquire NowProduct Introduction:
PBC7A200 is an industrial-grade FPGA core board based on the AMD (Xilinx) Artix-7 XC7A200T-2FBG484I, operating reliably over -40 to 85 C. It features abundant logic resources, 740 DSP slices, 4 high-speed transceivers and PCIe Gen2 interface, with low power, excellent value and easy integration. Ideal for industrial control, embedded development, data acquisition and general prototyping.

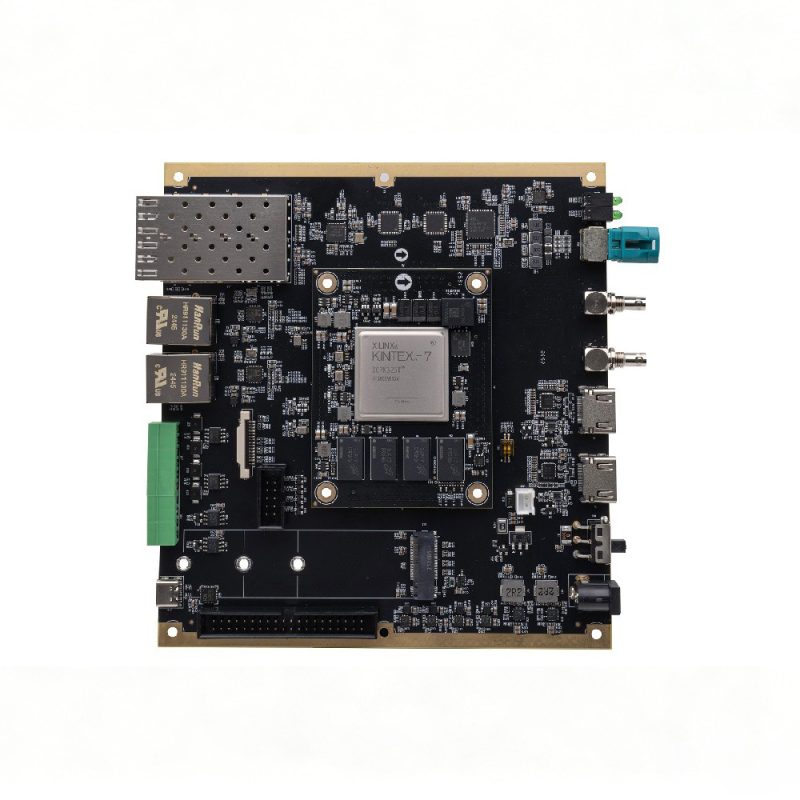

AMD Xilinx XC7K325T Kintex7 Development Board – FPGA Board
Inquire NowProduct Introduction:
PB7K325 is a high-performance video processing and algorithm prototyping board based on the AMD Kintex-7 industrial-grade FPGA (XC7K325T-2FFG900I). With ultra-low-latency hardware architecture, high-bandwidth data paths and full coverage of mainstream video interfaces, it operates reliably over -40 to 85 C industrial temperature range. Suitable for video codecs, medical imaging, high-speed data processing, protocol conversion and radar signal processing, with full custom support across hardware, IP and algorithms.

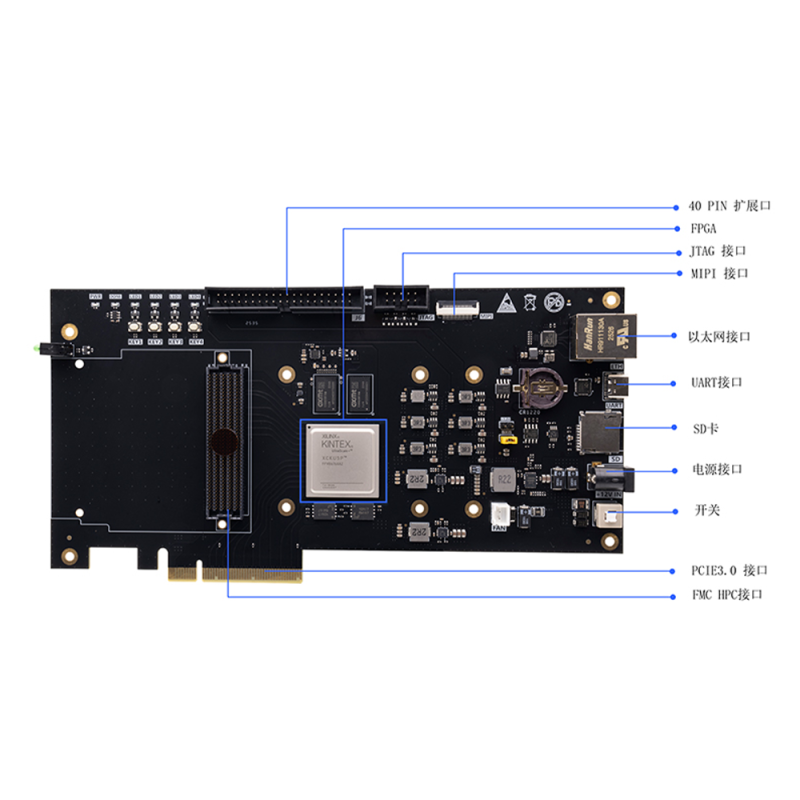

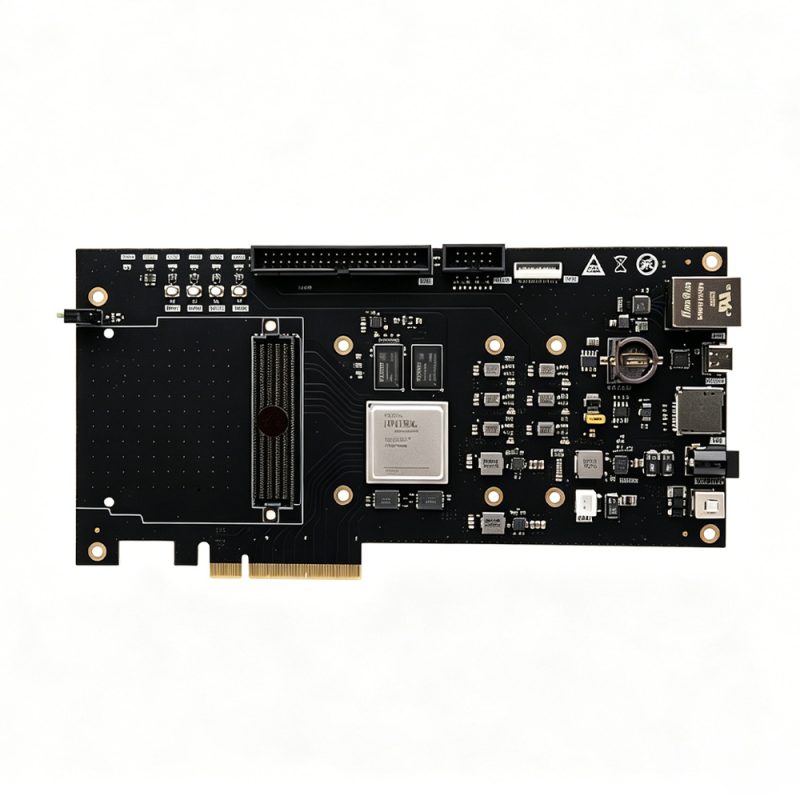

AMD XILINX XCKU5P Kintex UltraScale+ Development Board – FPGA Board
Inquire NowProduct Introduction:
PBKU5P is a high-performance development platform based on the AMD Kintex UltraScale+ XCKU5P FPGA. Equipped with PCIe Gen3 x8, FMC HPC and GTY 28Gb/s high-speed transceivers, it offers high bandwidth, strong compute and excellent value. It is ideal for video processing, industrial automation, high-speed communications, machine vision, data acceleration and medical imaging.

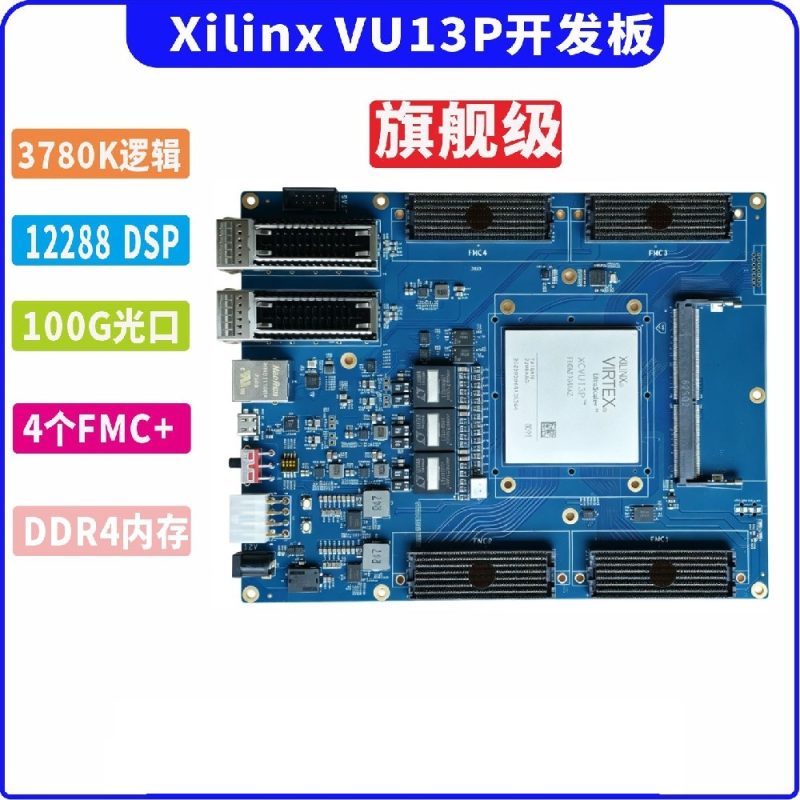

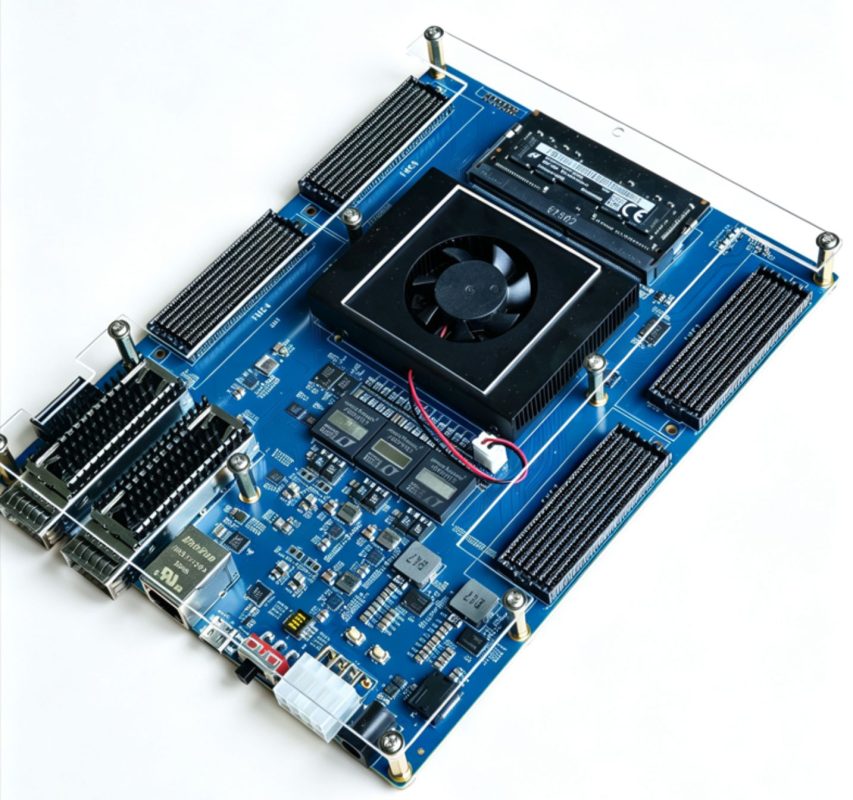

AMD Xilinx XCVU13F Virtex UltraScale+ FMC+ FPGA PCIE High-EndDevelopment Board
Inquire Now
The VU13F is an industrial-grade FPGA development board based on the AMD Xilinx UltraScale+ XCVU13P-2FHGA2104I, designed for high-speed networking, AI acceleration and complex algorithm prototyping. With 3,780K logic cells, 12,288 DSP slices and 94.5Mb on-chip BRAM, it offers abundant compute resources. Equipped with 4 FMC+ expansion interfaces, 2 QSFP28-100G optical ports, 1 Gigabit Ethernet and DDR4 SODIMM memory. Powered by 12V-20A ATX, with USB Type-C UART for debugging and a compact 205x160mm form factor. Industrial-grade temperature range for communications R&D, signal processing and research.

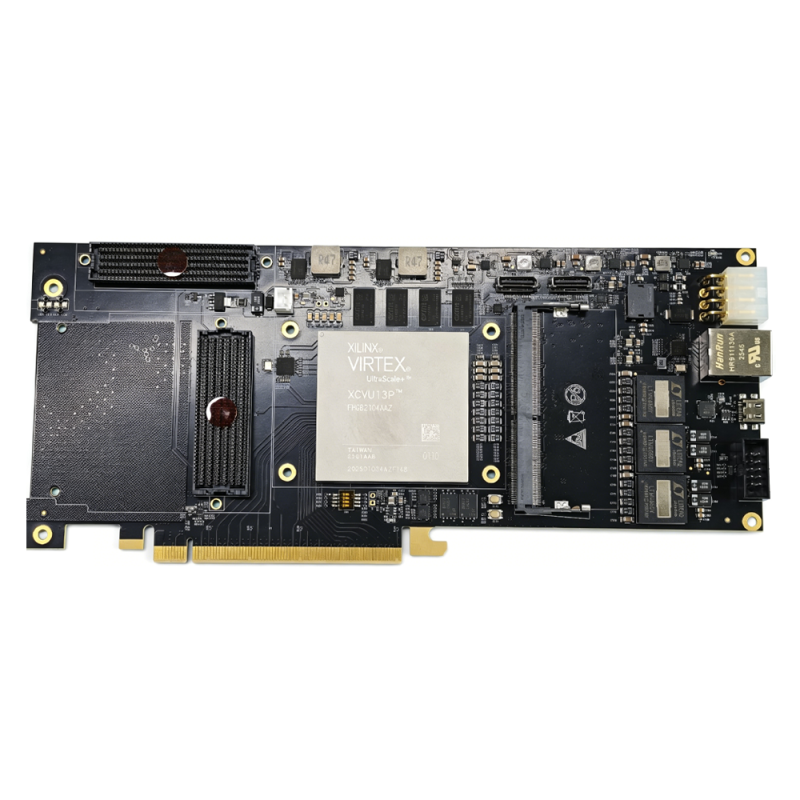

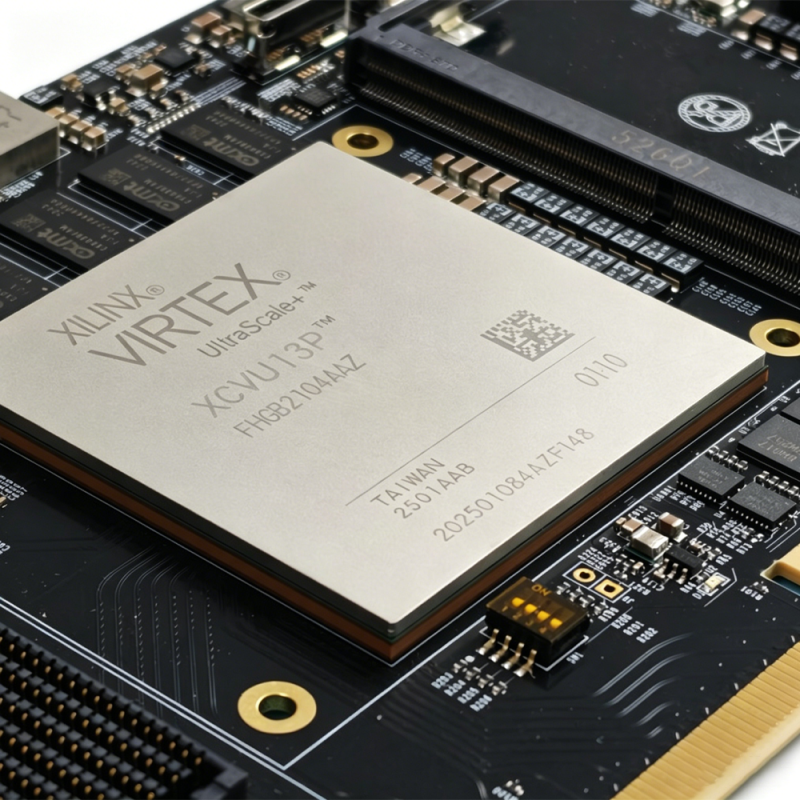

AMD Xilinx XCVU13P Virtex UltraScale+ FPGA PCIE High-EndDevelopment Board
Inquire NowThe VU13P (XCVU13P) is a flagship PCIe development board based on the AMD Xilinx Virtex UltraScale+ industrial-grade FPGA XCVU13P-2FHGB2104I, operating reliably over -40 to 85 C. With massive logic resources, abundant DSP slices, large on-chip memory and multiple high-speed interconnects, it targets high-compute, high-bandwidth, low-latency applications including industrial vision, high-speed signal processing, transaction processing and ASIC prototyping.

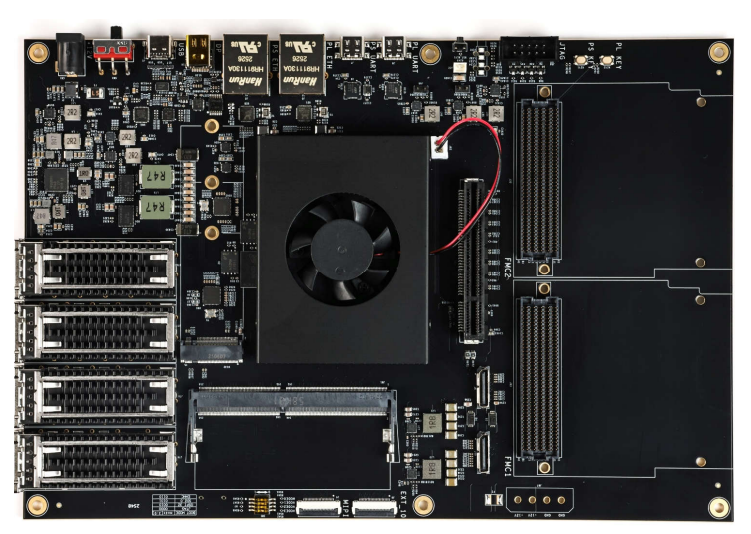

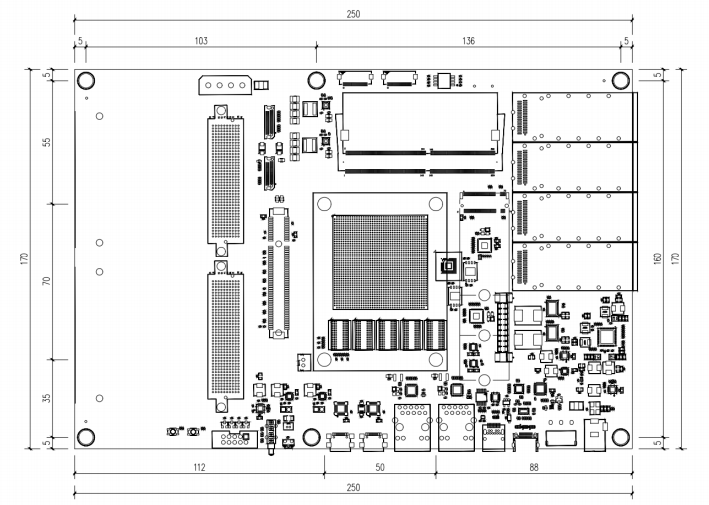

AMD XILINX XCZU19EG Zynq UltraScale+ MPSoC PCIE FPGA Development Board
Inquire Now
The ZU19 is a high-performance Zynq UltraScale+ MPSoC development platform based on the Xilinx XCZU19EG-2FFVC1760I, using a PS+PL heterogeneous architecture. The single chip integrates a quad Cortex-A53, dual Cortex-R5 and large-scale FPGA programmable logic. The PS includes 10GB ECC DDR4, 32GB eMMC and 2x 512Mb QSPI FLASH; the PL has a DDR4 SODIMM expansion slot. Equipped with 4 QSFP28 optical ports, PCIe x8, M.2, dual FMC-HPC, mini-DP, MIPI and dual Gigabit Ethernet — suitable for 100G high-speed communications, machine vision, AI inference, PCIe protocol verification and industrial control prototyping.

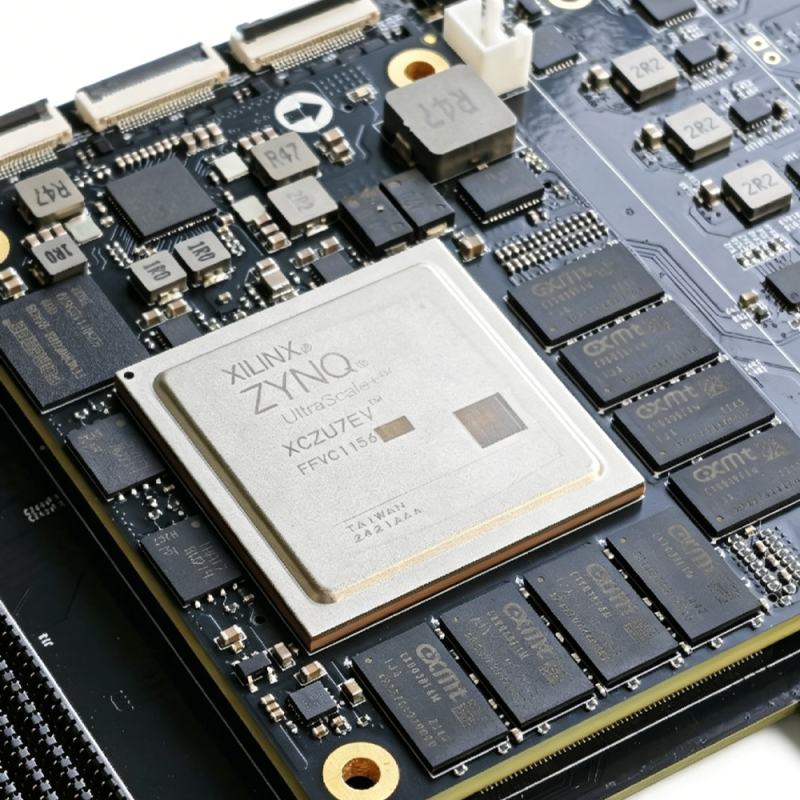

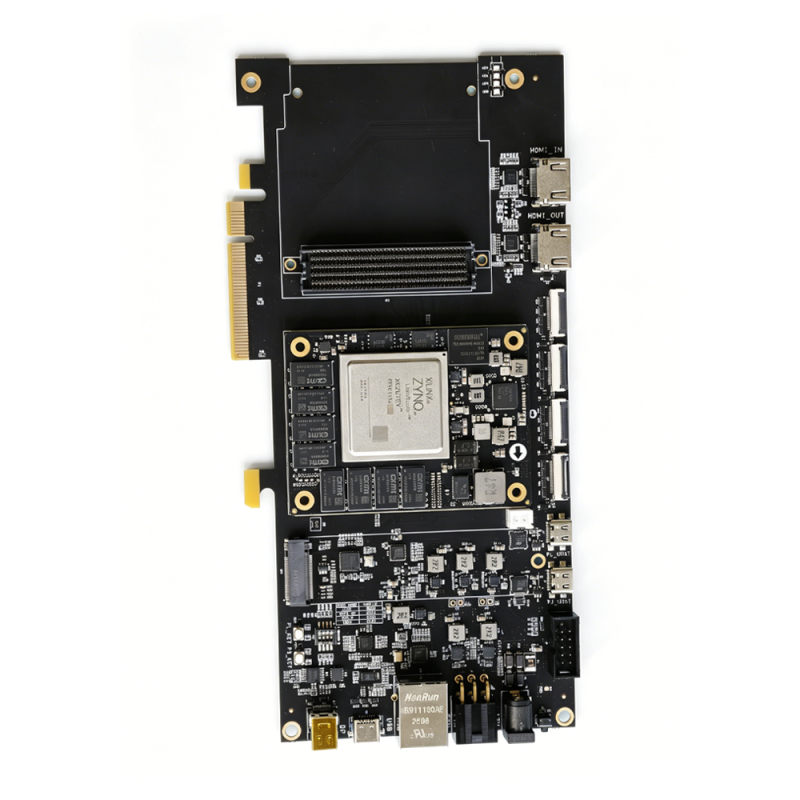

AMD Xilinx XCZU7EV Zynq UltraScale+ MPSoC PCIE FPGA Video Development Board
Inquire NowProduct Introduction:
A high-performance PCIe video processing board based on the XCZU7EV-2FFVC1156I industrial-grade MPSoC. With large logic resources, DSP arrays and a VCU hardware codec engine, it natively supports H.264/H.265 hardware encoding and decoding, targeting high-quality, low-latency multi-interface video system development.

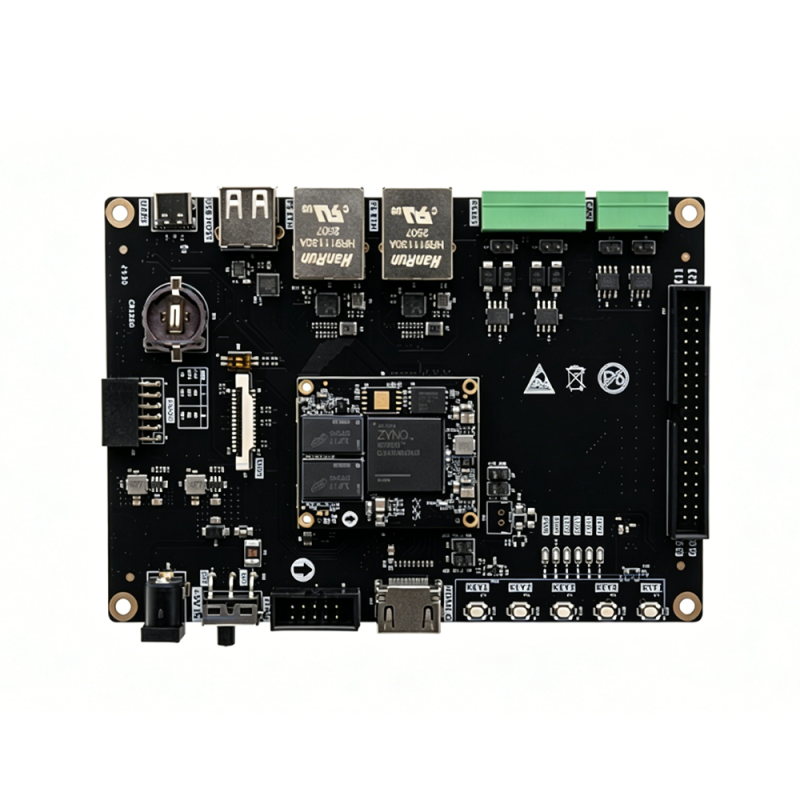

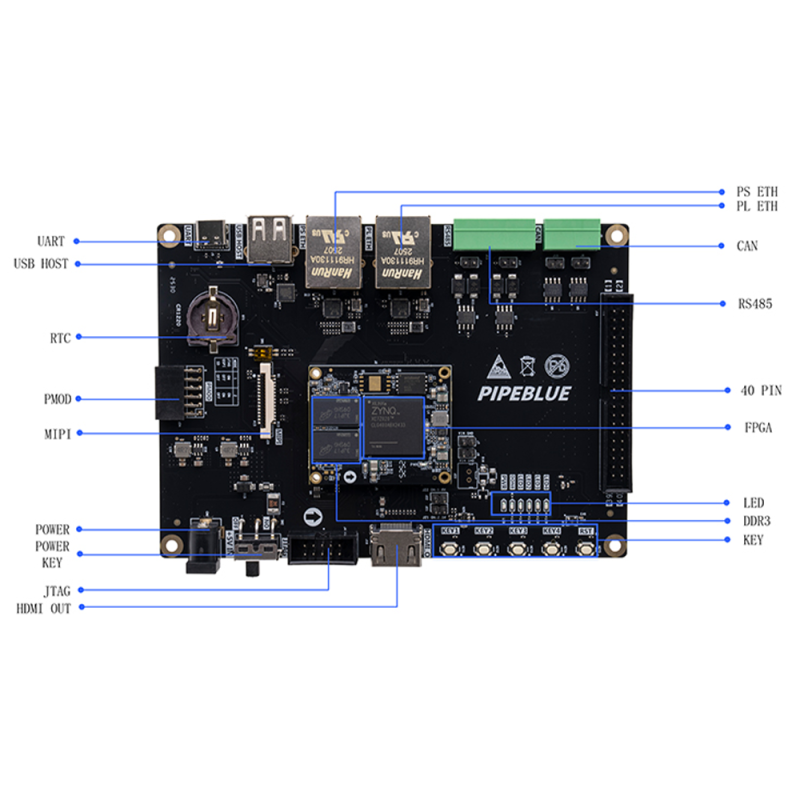

AMD XILINX ZYNQ-7000 XC7Z020 MPSoC FPGADevelopment Board
Inquire NowProduct Introduction:
PB7Z020 is a cost-effective embedded development platform based on the AMD Zynq-7000 SoC. It integrates a dual-core ARM Cortex-A9 and XC7Z020 FPGA programmable logic in a heterogeneous architecture, combining software flexibility with hardware parallel acceleration. Equipped with dual Ethernet, MIPI and HDMI, it offers low power, ease of use and strong extensibility — ideal entry-level and prototyping platform for audio/video processing, industrial control and smart device development.

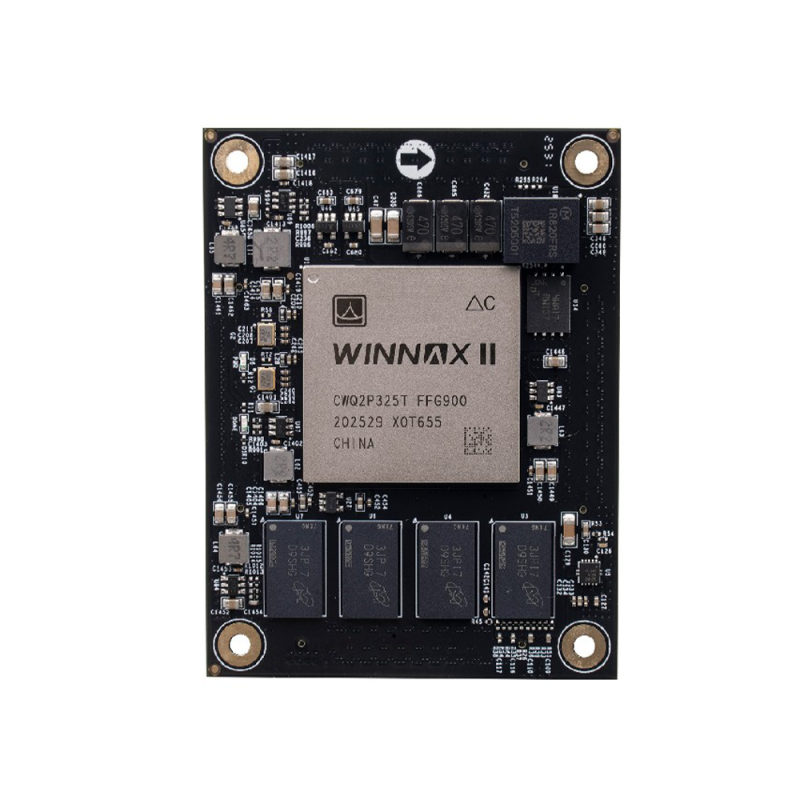

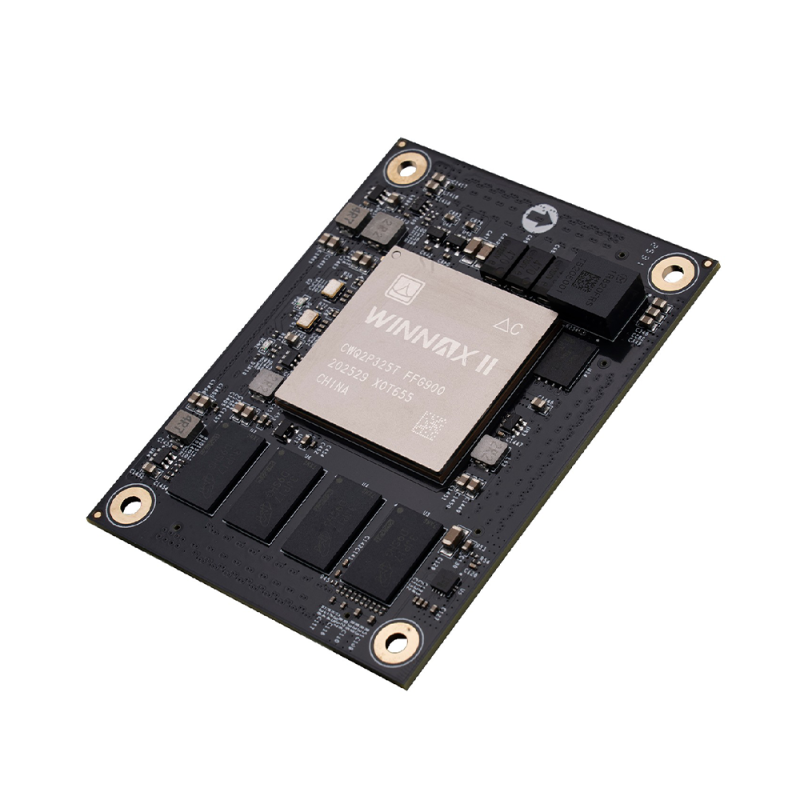

Domestic Kintex7 Core Board – PBC7K325G
Inquire NowProduct Introduction:
PBC7K325G is a domestic FPGA core board based on the domestic industrial-grade CWQ2P325T-FFG900, operating over -40 to 85 C. Following the Kintex-7 architecture, it integrates 326K logic cells, 16 GTX transceivers and 2GB DDR3 memory. Fully compatible with the Vivado ecosystem without patches. Offering high reliability, excellent value and easy integration — ideal for domestic substitution and embedded high-performance control.

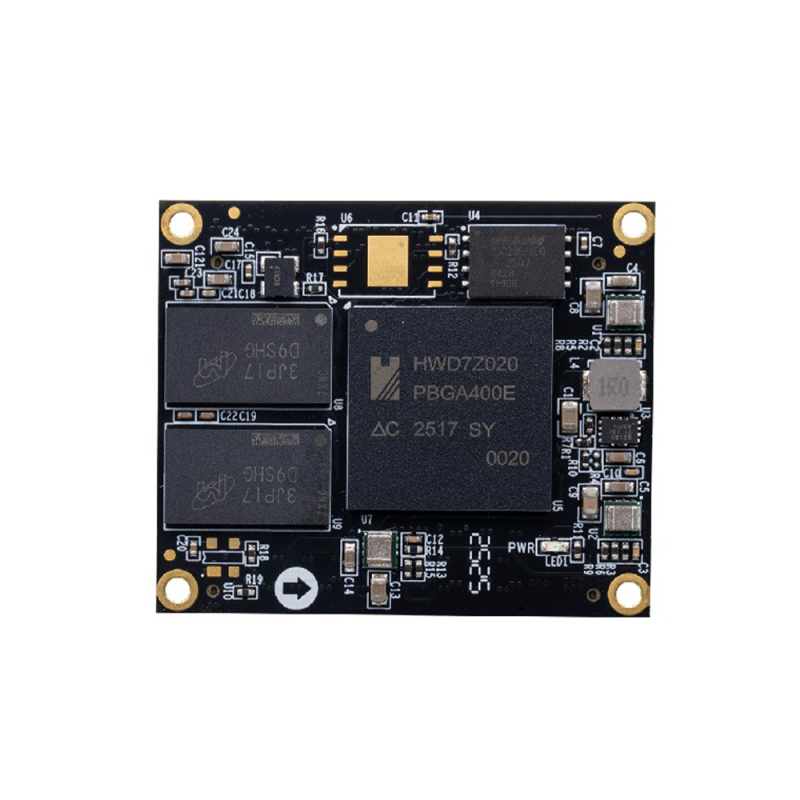

Domestic ZYNQ SoC Core Board – PBC7Z020G
Inquire NowProduct Introduction:
PBC7Z020G is a domestic Zynq-architecture SoC core board based on the domestic industrial-grade HWD7Z020-1PBGA400, integrating a dual-core ARM Cortex-A9 and FPGA programmable logic. With -55 to 125 C ultra-wide temperature range, 35x42x5.5mm compact size, native Vivado compatibility without patches and excellent value — ideal for miniaturized embedded systems, industrial control, medical devices, aerospace and domestic substitution.Our Capabilities
High-Performance FPGA Board & Core Board Customization
Core Products & Services
FPGA Development Boards & Core Boards
Standard development board and core board design and development
Custom development of boards, core boards and carrier boards, covering schematic design, PCB layout/routing and hardware debugging.
SoM System Development
Highly integrated modules based on ZYNQ/UltraScale+ for industrial control, AI, communications and more.
MPSoC Heterogeneous Computing Solutions
ZYNQ UltraScale+ hardware/software co-design for deep optimization of PS+PL heterogeneous platforms.
FPGA IP Core Customization
Custom IP development and integration for communications, image processing and high-speed interfaces, accelerating algorithm deployment.
Embedded Software Development
Driver and firmware development, Linux porting, algorithm migration and performance tuning.
Core products and services
FPGA Board & Core Board Development
Standard core board and carrier board customization; complete process of schematic design, PCB layout, and hardware debugging.
SoM System Module Development
Based on ZYNQ/UltraScale+, this highly integrated core module is suitable for industrial, AI and communication scenarios.
MPSoC Heterogeneous Computing Solution
ZYNQ UltraScale + software and hardware co-design, PS + PL heterogeneous platform optimization.
FPGA IP Core Customization Service
Customize / integrate IP for communication, image processing, high-speed interfaces, etc., to accelerate the implementation of algorithms.
Embedded Software Development
Driver, firmware, Linux system porting, algorithm porting and optimization.
Our Advantages
Our Projects
Over a decade of FPGA expertise, backed by a senior expert team
Guide to High-End UAV Computing Architecture: FPGA vs MPSoC
In high-end UAV onboard computing architecture design, pure FPGA vs MPSoC is a core question that cannot be avoided. Pure FPGA excels in hardware parallelism and deterministic latency; MPSoC integrates CPU, real-time cores and programmable logic on a single chip, balancing software flexibility with hardware acceleration. The two are not simply substitutes but correspond to fundamentally different workload characteristics.
Complete Guide to AMD Alveo V80 Server Accelerator Card
The AMD Alveo V80 is a high-end server accelerator card based on the Versal HBM XCV80 adaptive SoC architecture, designed for data-center high-bandwidth, high-throughput, massively parallel computing. It is widely used in HPC, quantitative finance, big data analytics and network acceleration. The V80 uses the new Versal HBM architecture with strict toolchain version binding; standardized deployment of prerequisites, drivers and frameworks is essential for reliable compilation, board bring-up and stable hardware development.
FPGA Development Board Customization Process
Our team has over a decade of industry experience. We collaborate deeply with clients across vertical sectors to solve technical challe...
