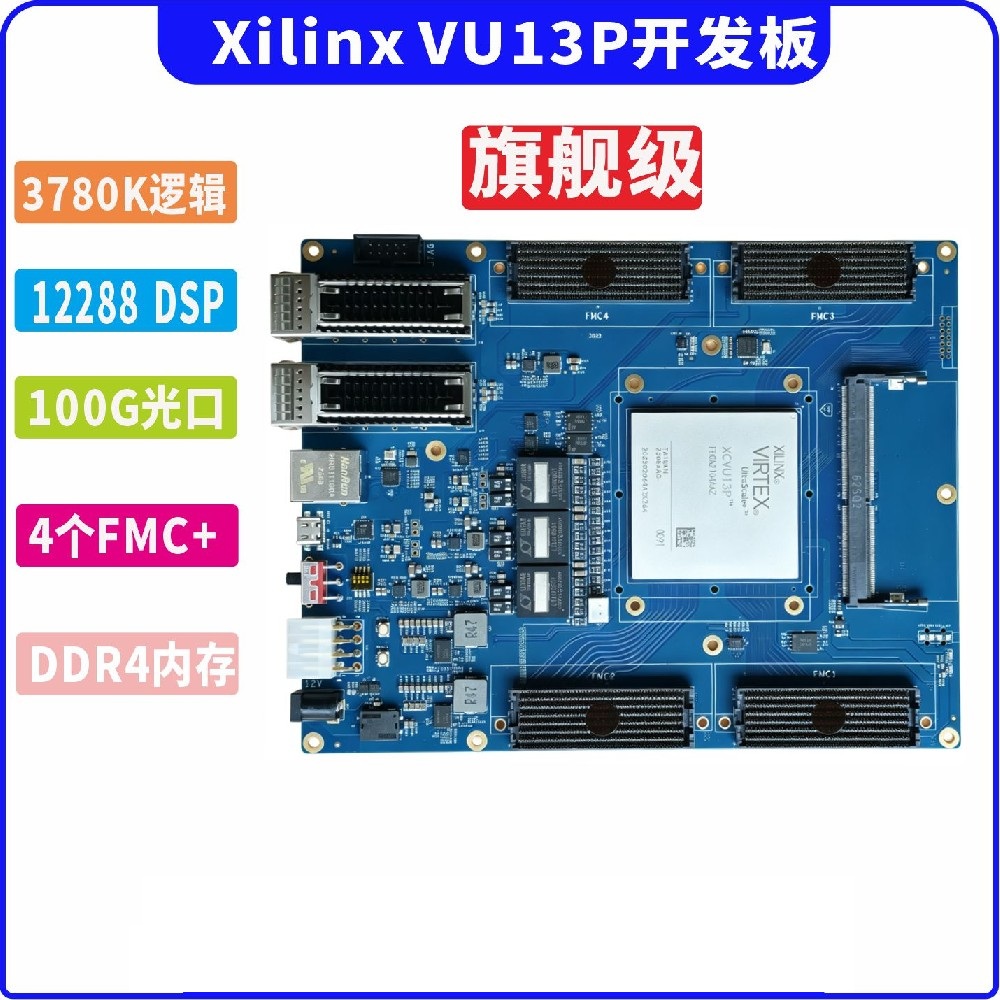

AMD Xilinx XCVU13F Virtex UltraScale+ FMC+ FPGA PCIE High-EndDevelopment Board

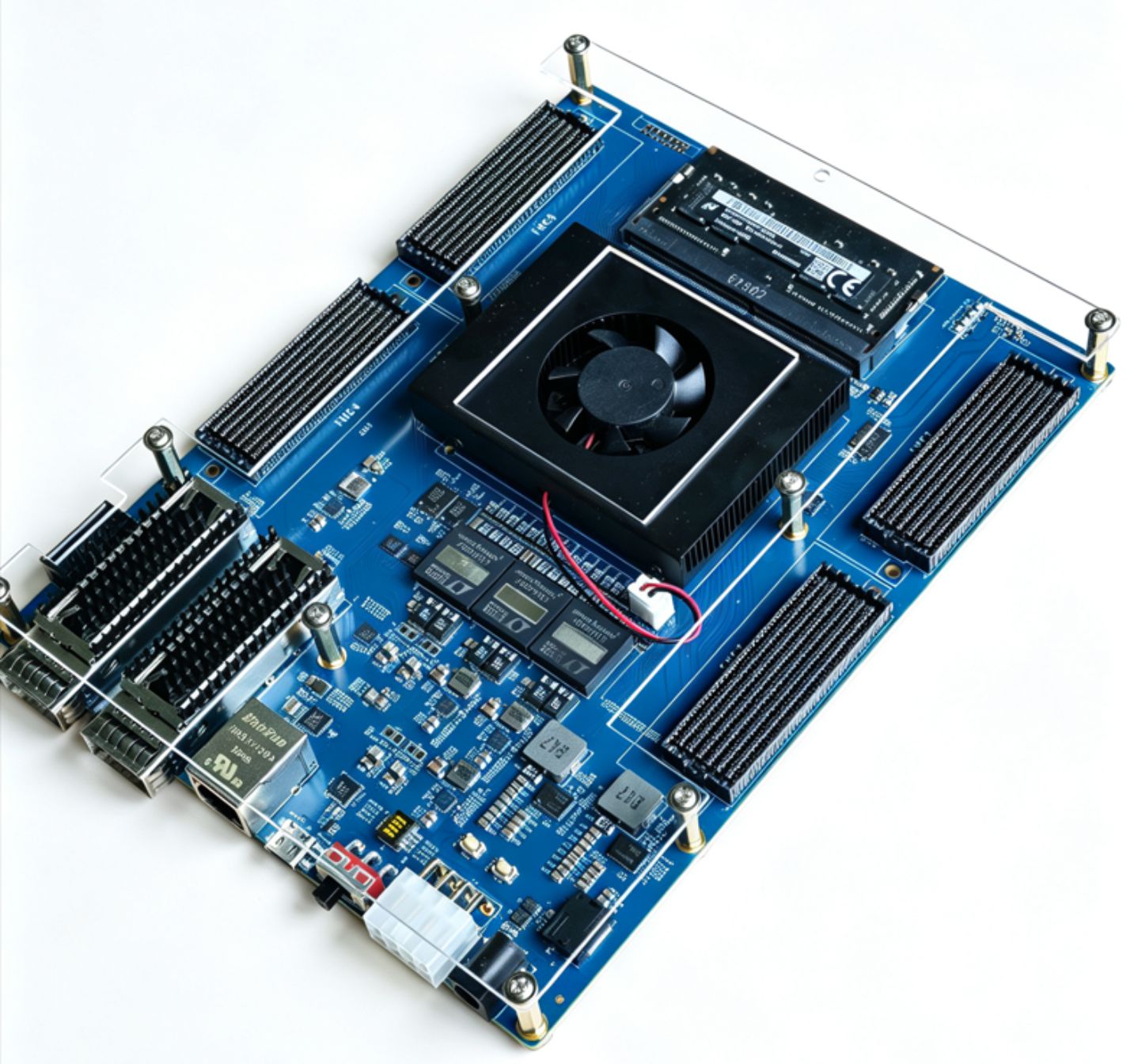

The VU13F is an industrial-grade FPGA development board based on the AMD Xilinx UltraScale+ XCVU13P-2FHGA2104I, designed for high-speed networking, AI acceleration and complex algorithm prototyping. With 3,780K logic cells, 12,288 DSP slices and 94.5Mb on-chip BRAM, it offers abundant compute resources. Equipped with 4 FMC+ expansion interfaces, 2 QSFP28-100G optical ports, 1 Gigabit Ethernet and DDR4 SODIMM memory. Powered by 12V-20A ATX, with USB Type-C UART for debugging and a compact 205x160mm form factor. Industrial-grade temperature range for communications R&D, signal processing and research.
Product Highlights:
- Positioning: VU13F is a high-performance development board based on the AMD Xilinx UltraScale+ XCVU13P-2FHGA2104I industrial-grade FPGA, targeting high-speed signal processing, AI acceleration, 100G networking, big-data computing and algorithm prototyping.
- Compute Resources: The XCVU13P features 3780K logic cells, 1728K LUTs, 3456K flip-flops, 12288 DSP slices and up to 94.5Mb Block RAM, supporting large-scale parallel algorithms and complex logic development.
- Rich Interfaces: 4x FMC+ ports for flexible mezzanine expansion; 2x QSFP28 100G optical ports for ultra-high-speed networking; 1x GbE for general network connectivity.
- Storage & Debug: Supports DDR4 SODIMM modules (capacity selectable); USB Type-C provides UART debug serial console for debugging and logging.
- Hardware Specs: Industrial-grade temperature range; 12V/20A ATX power; compact 205x160mm form factor for lab integration.
- Applications: Ideal for 100G high-speed network development, signal processing, AI inference acceleration, protocol verification, research prototyping and high-performance algorithm validation.
Specifications:
| Board Model | VU13F |
| Main Chip | XCVU13P-2FHGA2104I |
| Temperature Grade | Industrial; -40°C~85°C |
| Logic Cells | 3780K |
| LUTs | 1728K |
| Flip-Flops | 3456K |
| DSP Silces | 12288 |
| Block RAM | 94.5Mb |
| DDR4 | SODIMM Slots |
| FMC+ | 4个 |
| GbE | 1个 |
| QSFP28 | 2x 100G |
| UART | 1x USB Type-C |
| Power | 12V 20A ATX |
| Dimensions | 205*160mm |
Applications:
- High-speed Networking Development：With 2x QSFP28 100G optical ports, develop 100G network protocols, packet processing, high-speed data transfer and communication protocol prototyping.
- Signal Processing：Massive DSP slices and logic resources for radar/RF signal processing and high-speed digital algorithm validation.
- AI & Algorithm Acceleration：Massively parallel compute resources support AI inference acceleration, complex algorithm hardware prototyping and big-data parallel computing.
- Research & Product Prototyping：Industrial-grade hardware with multiple FMC and expansion interfaces for university research and lab projects; connect various mezzanine cards to rapidly build custom hardware systems.
- High-performance Logic System R&D：Complex logic engineering development and debugging; integrable into end equipment for pre-research evaluation and solution validation.
