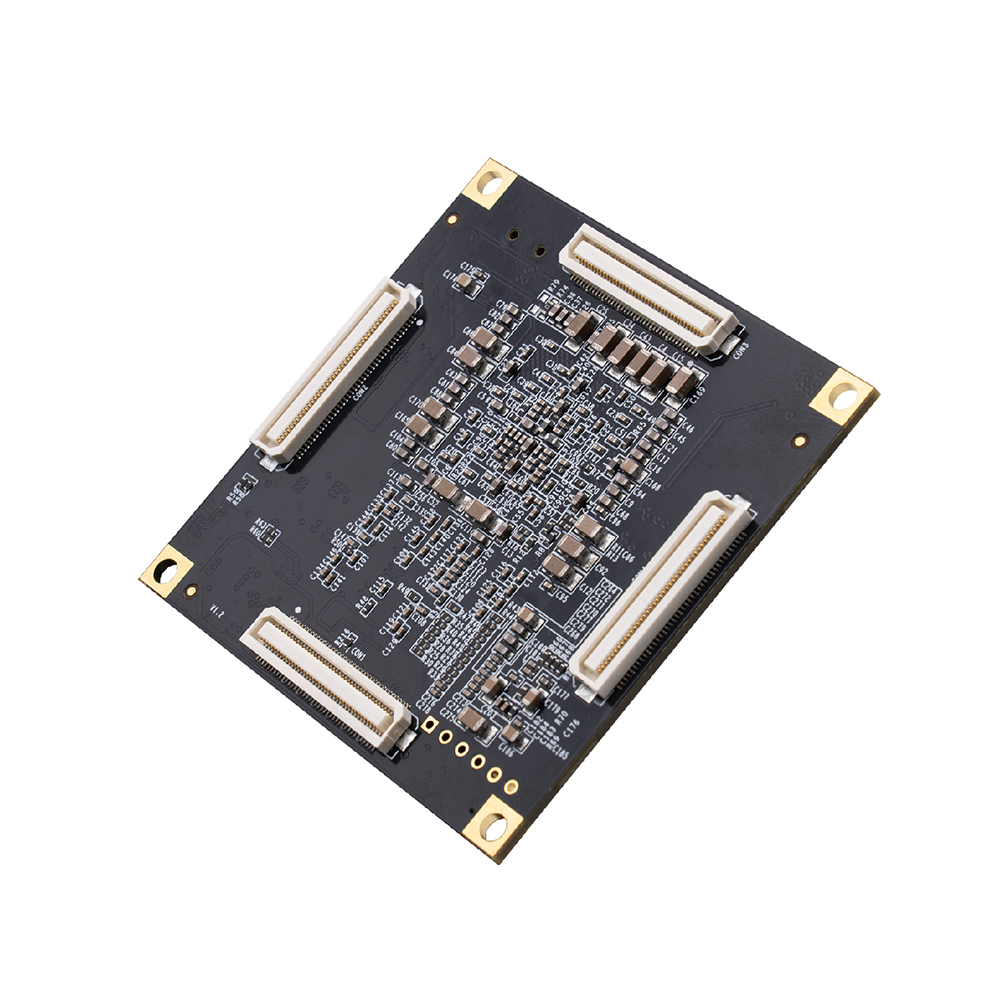

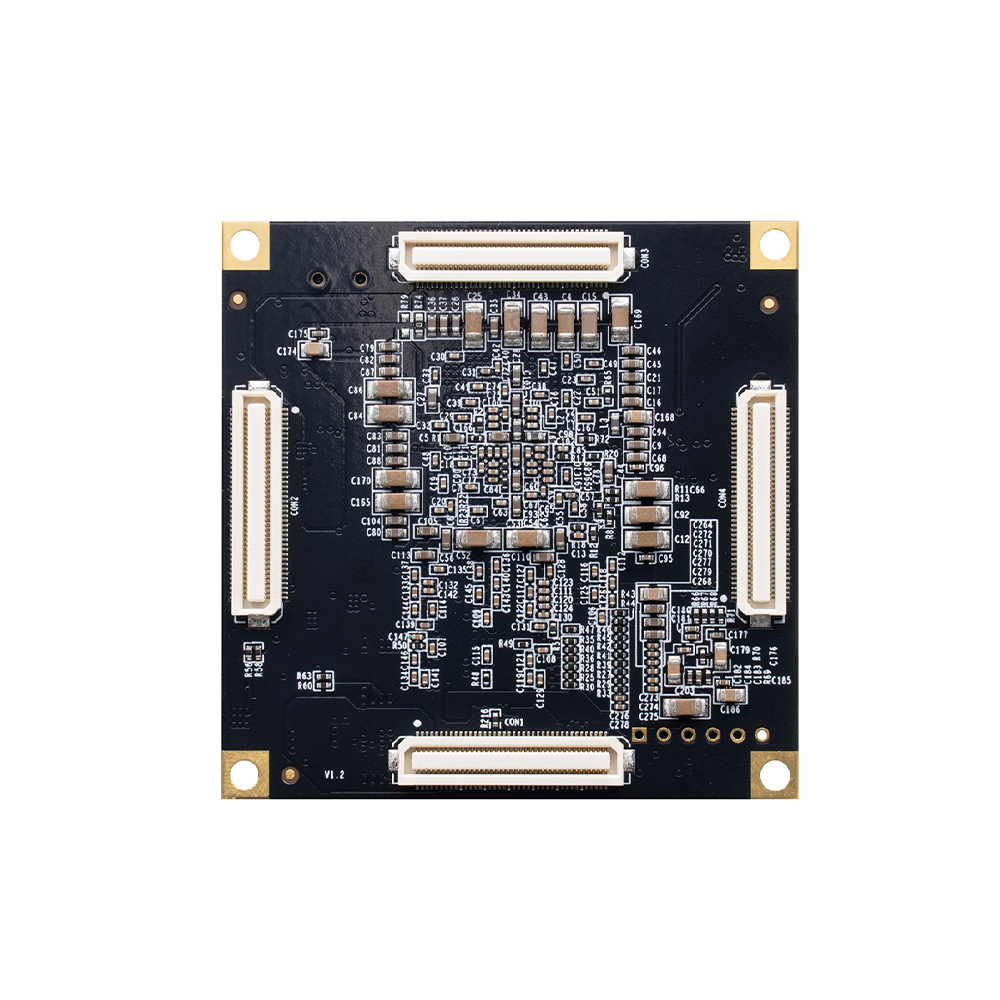

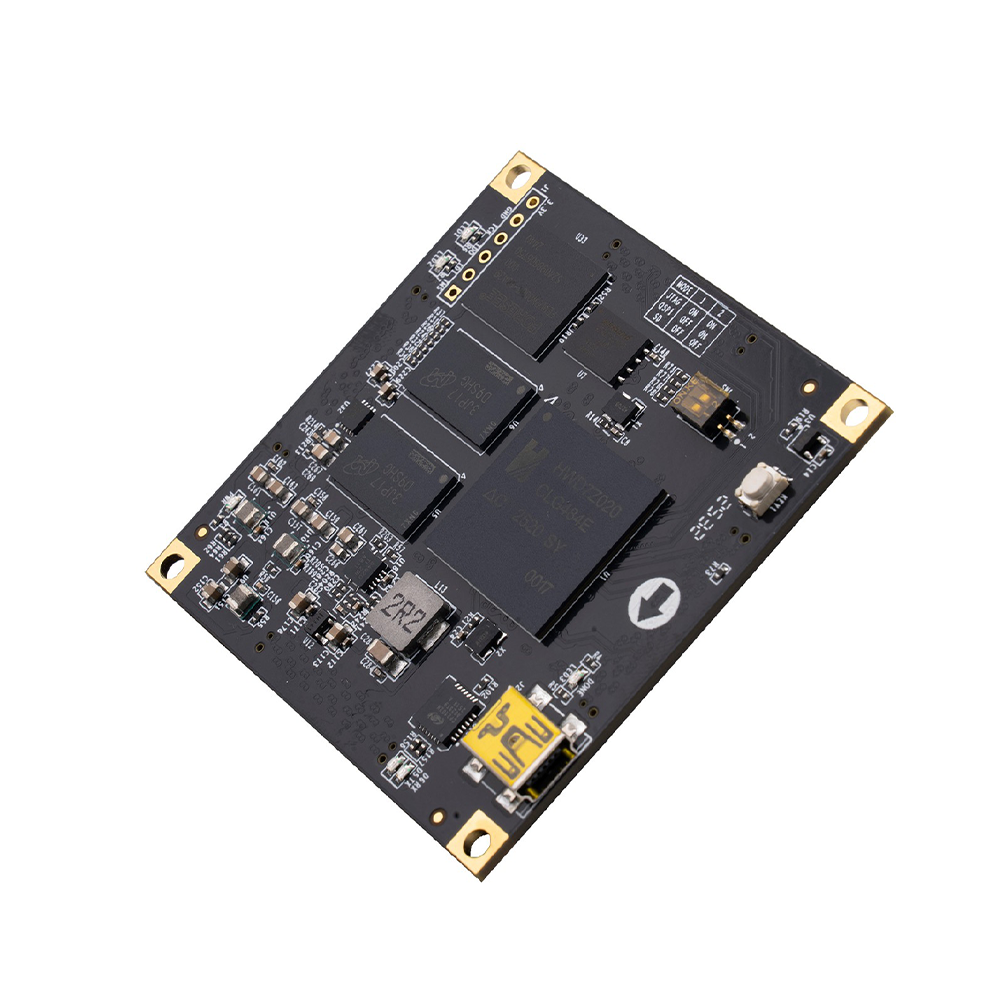

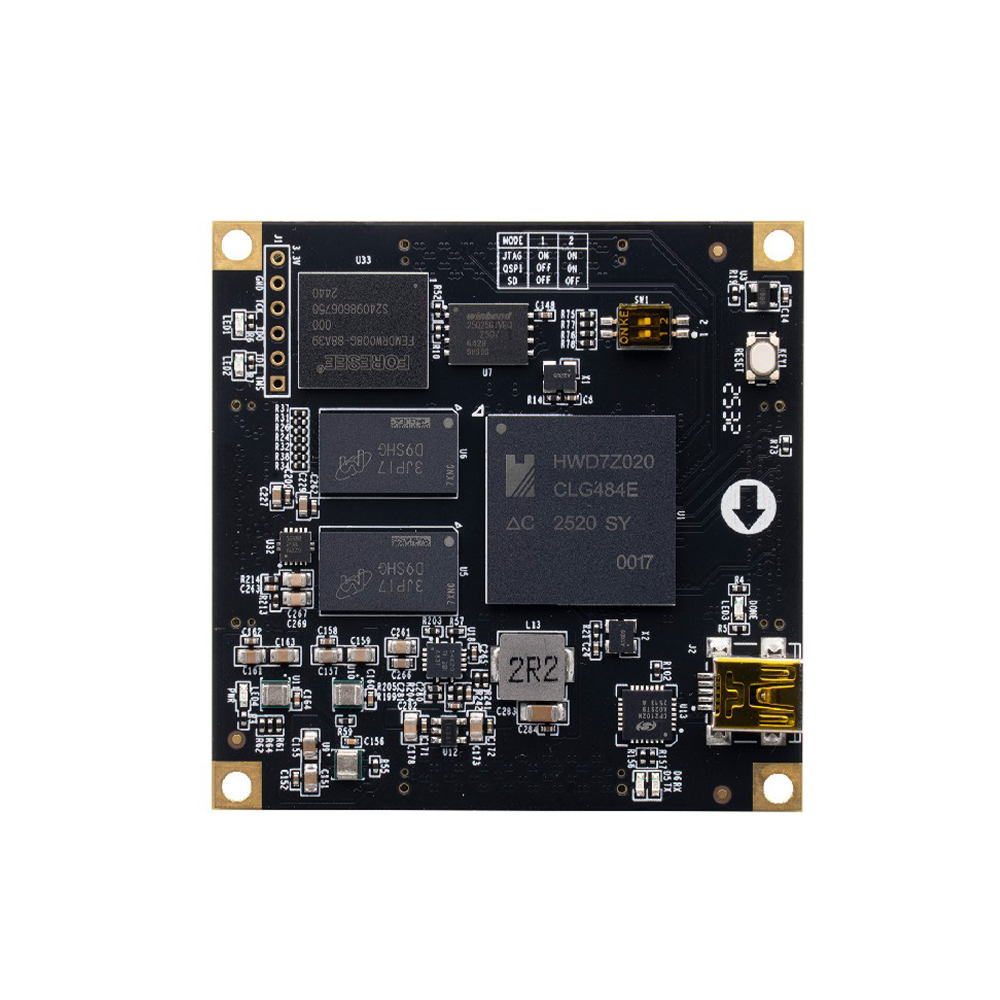

Domestic ZYNQ SoC Core Board – PBC7Z021G
Product Introduction:
PBC7Z021G is a fully domestic Zynq-architecture SoC core board based on the domestic industrial-grade HWD7Z020-1CLG484, integrating a dual-core ARM Cortex-A9 and FPGA programmable logic. It operates over -55 to 125 C, measures just 60x60x8.4mm, and is natively compatible with Vivado without patches. With high integration, high reliability and cost advantages — ideal for domestic embedded systems, smart terminals, industrial control, medical devices and aerospace.
Key Advantages:
100% Domestic: Domestic ZYNQ chip with full self-control, reducing external dependency for national substitution.
Ultra-Wide Industrial Temperature: Operates from -55°C to 125°C for industrial, military and automotive harsh environments.
Ultra-Compact Form Factor: 60x60x8.4mm compact size for small devices and embedded integration.
Heterogeneous Dual-Core: Dual A9 @800MHz + FPGA with software/hardware co-processing for flexibility and acceleration.
Easy Development: Fully Vivado-compatible without patches, shortening domestic project development cycles.
Core Board Specifications:
| Core Board Model | PBC7Z021G |
| FPGA Chip | HWD7Z020-1CLG484 |
| ARM Chip | Dual ARM Cortex-A9 (800MHz) |
| DDR | DDR3 1GB |
| Grade | Industrial; -55°C to 125°C |
| Logic Cells | 85K |
| LUTs | 53200 |
| Flip-Flops | 106400 |
| DSP | 220 |
| Block RAM | 4.9Mb |
| eMMC FLASH | 8GB |
| QSPI FLASH | 256MBit |
| PS MIO | 39个 |
| PL IO | 198个 |
| LVDS Pairs | 48个 |
| Voltage-Configurable IO | 100个 |

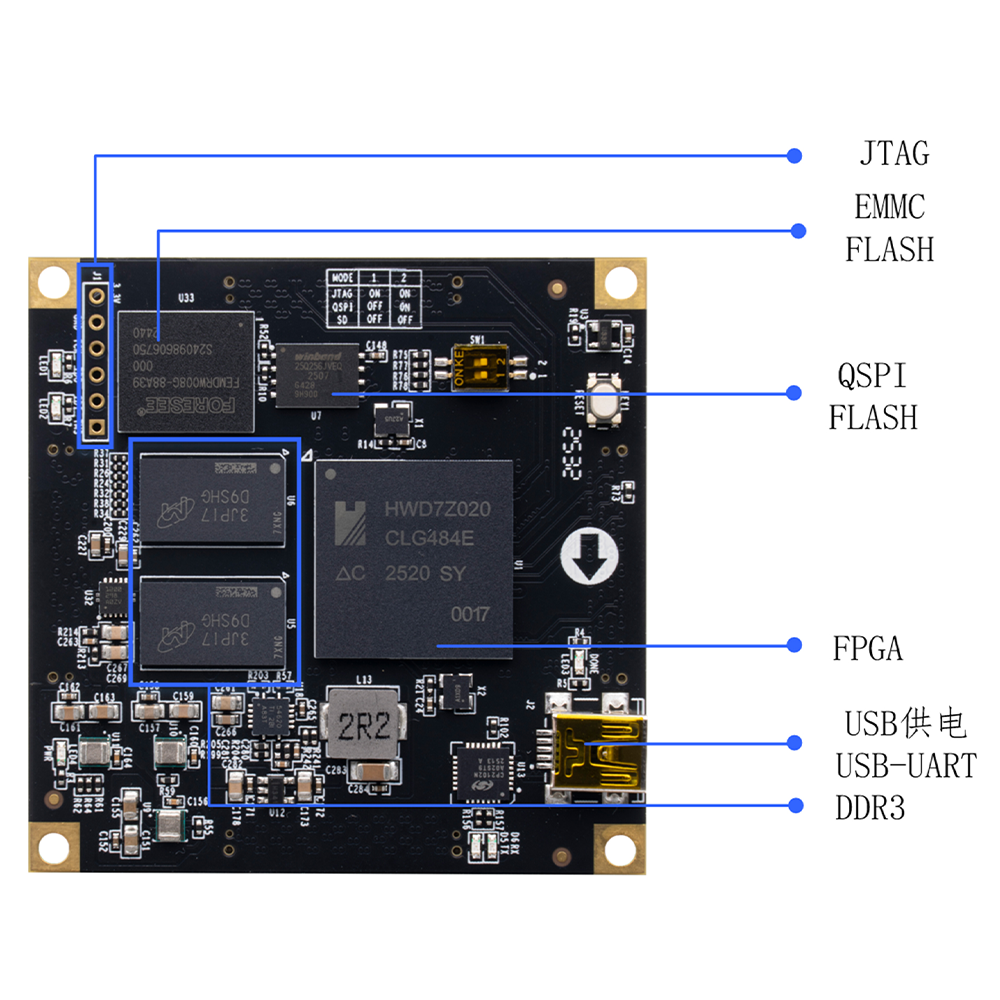

Functional & Interface Parameters:
| DDR3 | 32-bit bus, up to 1066 Mbps |
| QSPI FLASH | 32MB QSPI FLASH for FPGA user data storage |
| eMMC FLASH | 8GB can serve as large system storage |
| JTAG Interface | 6-pin JTAG header for download and debugging |
| ADC | 2 ADC for on-chip voltage and temperature sensing, 1Msps |
| 晶振 | 1 33.33MHz oscillator for PS clock; 1x 50MHz oscillator for PL clock |
| USB串口 | 1 USB-to-serial interface, 5V power and PC communication |
| 按键 | 1 reset button |
| Connector | 4 80-pin Panasonic connector: 39 PS pins, 198 PL pins |
| LED灯 | 2 LED power indicator，1 PS-controlled, 1 PL-controlled |
| DIP switch | Configures PS boot mode: JTAG/QSPI/SD card |
Power:
| Input Voltage | 5V 供电 |
Dimensions:

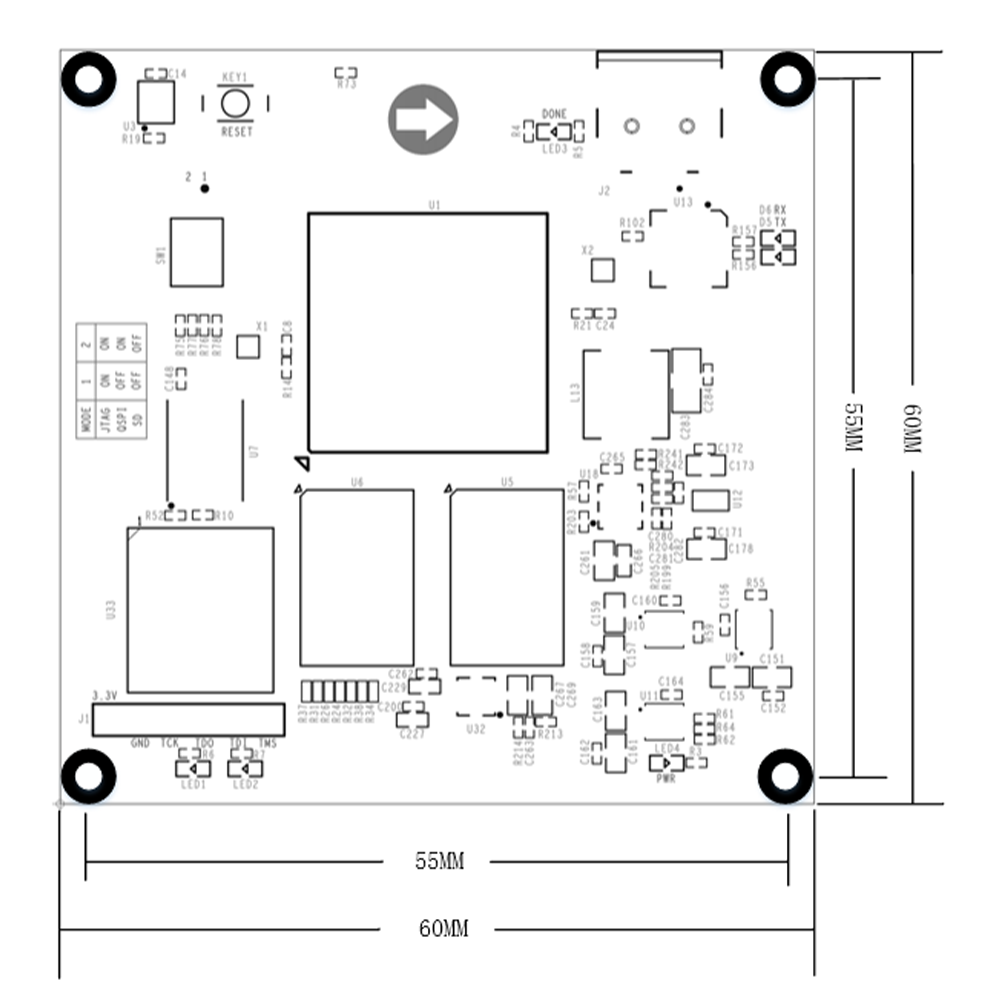

| Dimensions | 60MM x 60MM x 8.4MM |
Applications:
1. Image/Video Processing (Preferred for Domestic Embedded Systems)
Supports HD acquisition, video preprocessing, enhancement, low-latency codec and multi-view fusion across the full vision pipeline. Widely suited for industrial cameras, smart surveillance terminals, embedded vision devices, portable instruments and medical image preprocessing. Ultra-compact form factor fits miniaturized integration; domestic hardware/software delivers HD quality and ultra-low latency — the preferred core platform for domestic embedded vision systems.
2. Wired/Wireless Communications & Industrial Gateways
Rich peripheral interfaces, LVDS high-speed links and ARM compute support industrial Ethernet, multi-serial protocols, wireless transmission, protocol conversion, encrypted pass-through and edge gateway processing. Used in industrial modules, IoT gateways, automotive communication terminals, security devices and power communication equipment. Ultra-wide temperature range ensures stable operation in harsh environments, with domestic architecture guaranteeing communication stability, security and reliability.
3. Defense & Aerospace
Supports -55℃~125℃ultra-wide temperature, 100%domestic, self-controllable with ultra-high environmental reliability. Suited for airborne equipment, satellite TT&C, military measurement, avionics, defense communications and field terminals. Operates reliably through extreme temperatures, vibration and EMI, supporting core device domestic substitution and self-controllability in defense.
4. Medical Endoscopes & Portable Medical Devices
Ultra-compact, low-power, high-stability hardware suits HD endoscope systems, laparoscopy imaging, minimally invasive devices, portable instruments, health monitoring terminals and medical control modules. Custom FPGA ISP algorithms optimize imaging quality with ARM main control for precise system management. Domestic solutions reduce R&D and production costs while ensuring long-term stable, safe operation.
5. Embedded AI & Edge Intelligence
Heterogeneous compute architecture efficiently supports lightweight AI inference, image recognition, object detection and intelligent data analysis at the edge. Suited for smart terminals, industrial sensors, smart surveillance, embedded controllers and IoT nodes. Domestic edge intelligence solutions enable rapid on-device AI deployment, lowering development barriers and accelerating terminal intelligence upgrades.
6. Industrial Control & Micro Smart Equipment
Rich expansion interfaces and wide-temperature reliability suit compact PLCs, motion control, sensor acquisition, equipment automation, industrial smart terminals and new-energy control equipment. Ultra-compact form factor meets miniaturization and integration needs. Domestic industrial solutions support full domestic substitution, adapting to complex temperature and industrial conditions.
